The Power Box June 2006

To run the various stuff in the office I had a pair of 12v power supplies, one plugged into a UPS that was burdened with the main computer. And a dozen 12 volt wall wart DC power packs. This was a picture of inefficiency.
Old power setup

My goal is to create a separate system of a battery backup for all the 12v items on the desk, and leave the UPS to powering the big computer & it's monitor.

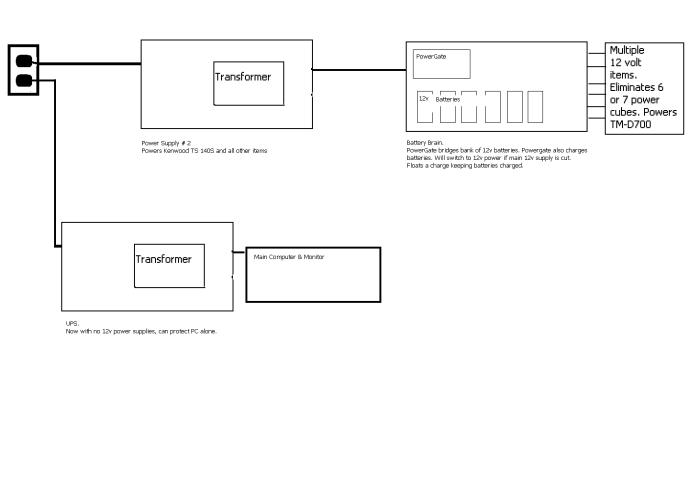

After

As usual, this project will be made up of junk parts, excess scrap and other stuff.

Parts

Four bay SCSI drive case
Case

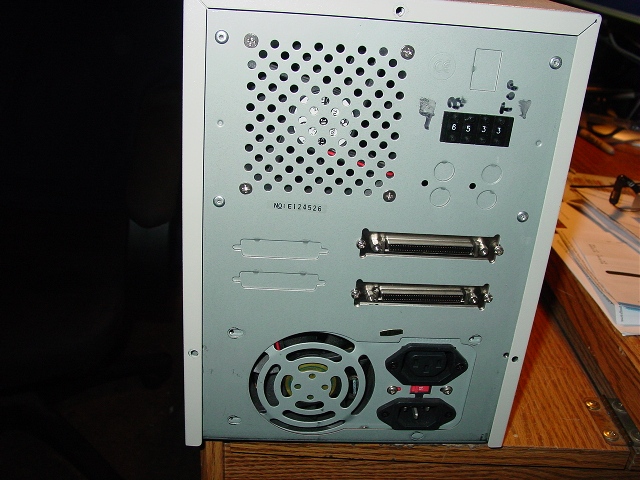

Back of case
Back

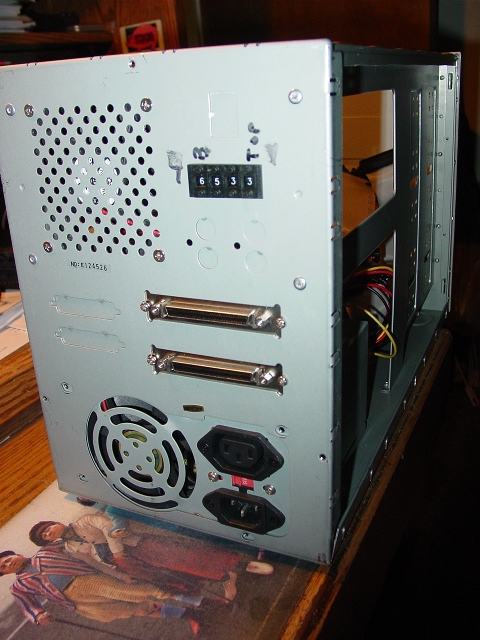

Take the cover off
Cover off

There were no drives in this old case. Just a power supply and some cables
Inside the case

Out go the unneeded parts
Take out the uneeded bits

In  go some batteries
Fill with batteries

Four batteries take up the bottom of the case
Four batteries

One strip of cardboard between the rows of batteries, wire ties hold them secure.
Secure the batteries

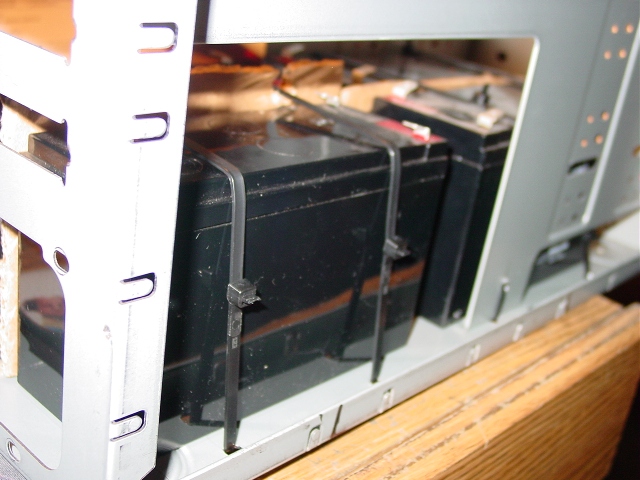

 I drilled holes in the case bottom for the ties to pass through.
wire ties

To fit two more batteries, I need a shelf to hold them above the lower ones. A dead CDROM comes in handy here. Pop the metal cover off of the chassis.
CDROM shell

CDROM drive turned shelf goes in the bay
line up CDROM

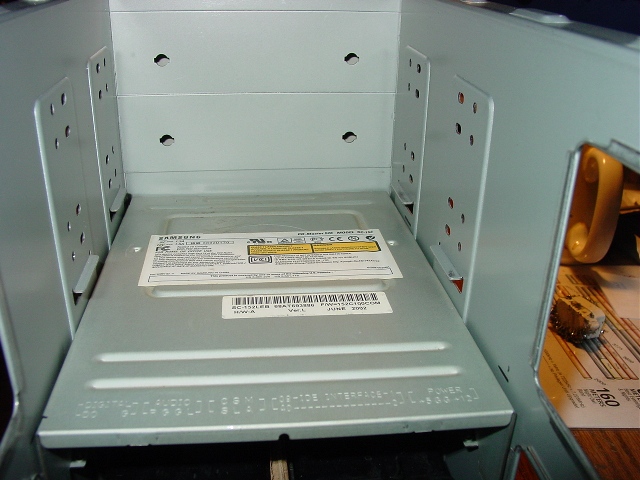

Now I have a shelf
Shelf

Two more batteries and begin the wiring. Using some 10 gauge insulated wire and TNT connectors. Who still calls them TNT connectors?
More batteries

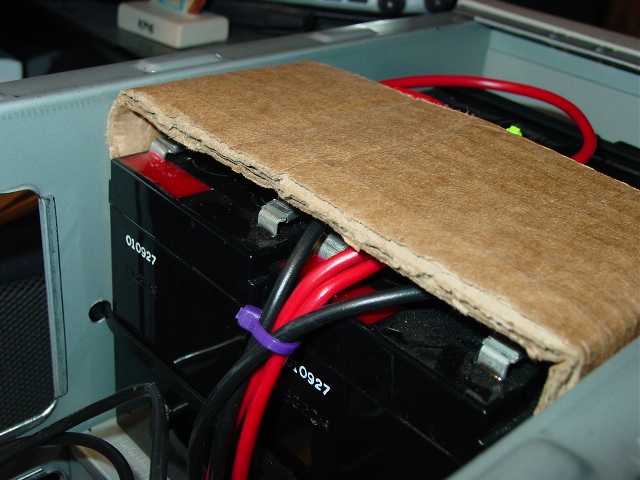

Safety measure, cover the battery terminals.
Cover the terminals

Next is the battery isolator. This will charge the batteries and switch from AC-DC power supply to batteries so the radio gear & computer network will stay up in a power failure.

To mount the isolator I have this scrap drive adaptor that I will trim and drill mounting holes for.
Drive scrap

Trimmed up and ready.
Ready to install'

I held the drive adaptor up to the case a marked where to drill.
Drill guide marks

Mounted the isolator shelf with HDD screws.
isolator shelf

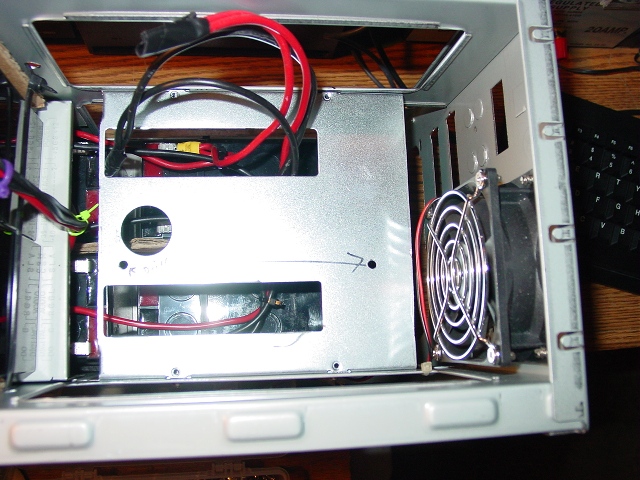

Overhead view. Fan is functional.
Overhead view

Pwrgate Isolator. This uses Anderson Power Pole connectors.
Powergate isolator

I installed Power Pole connectors on the battery wires, rigged up a Power Pole feed from the bench power supply and another Power Pole jumper to a distribution panel.

All the 12volt items on the bench are now powered from the backup battery system. A few other 5 volt item are fed from the computer or monitor USB ports. Very few DC power packs left plugged in.

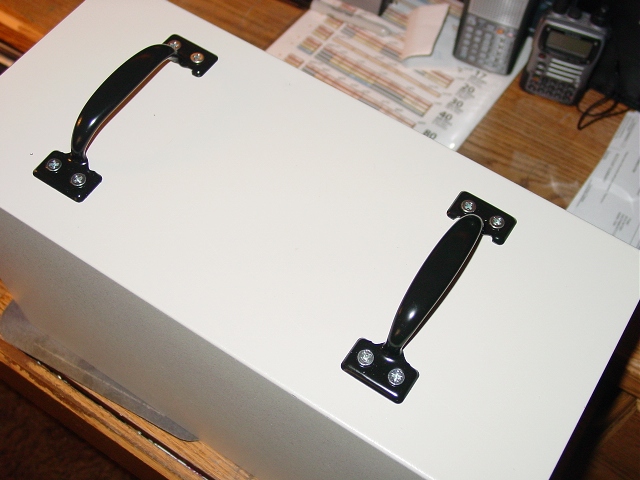

Six batteries make this a little heavy - I added a pair of gate handles for easier lifting.
Handles on case

Use shortest screws I can. Refer back to the cardboard insulator on the upper battery deck.
Inside upper case
